This machine is mainly suitable for industries such as pharmaceuticals, chemicals, metallurgy, and food,
specializing in grinding hard solid materials such as plastics, copper wires, and waste. It can also be used as a supporting equipment for fine grinding processes.

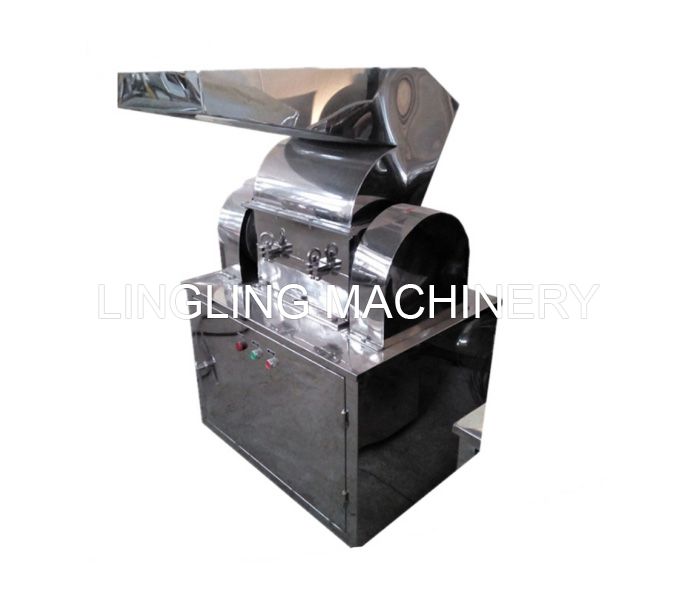

The LINGLING coarse crusher is a horizontal crushing structure. The material enters the crushing chamber from the hopper, and is impacted, sheared, and crushed under the action of rotating centrifugal force using rotating and fixed knives. The material automatically flows towards the outlet. This machine is designed according to the GMP standard. The entire machine is made of stainless steel. Simple structure, convenient cleaning, and low noise. It is the most ideal equipment in the roughing mill.
The machine tool adopts a horizontal structure, with the spindle supported by two rolling bearings and two movable frames installed. Each movable frame is equipped with a total of three moving knives. The lateral transmission device of the bearing box is installed on the fixed blade 4.
| Model | CAPACITY (kg) | Feed size(mm) | Output size(mm) | Total power(kw) | Main speed(r/min) | Dimension(mm) | Weight (kg) |
| CSJ-80 | 20-50 | <50 | 0.5-20 | 1.5 | ~500 | 510*450*980 | 120 |
| CSJ-120 | 50-300 | <100 | 0.5-20 | 3 | 650*700*1200 | 250 | |
| CSJ-200 | 100-400 | <200 | 0.5-20 | 5.5 | 700*800*1200 | 420 | |
| CSJ-400 | 200-600 | <200 | 0.5-20 | 7.5 | 1200*1000*1360 | 800 | |
| CSJ-600 | 300-800 | <200 | 0.5-20 | 22 | 1300*1000*1400 | 1000 | |
| CSJ-1000 | 500-1500 | <200 | 0.5-20 | 37 | 1400*1000*1850 | 1300 |
