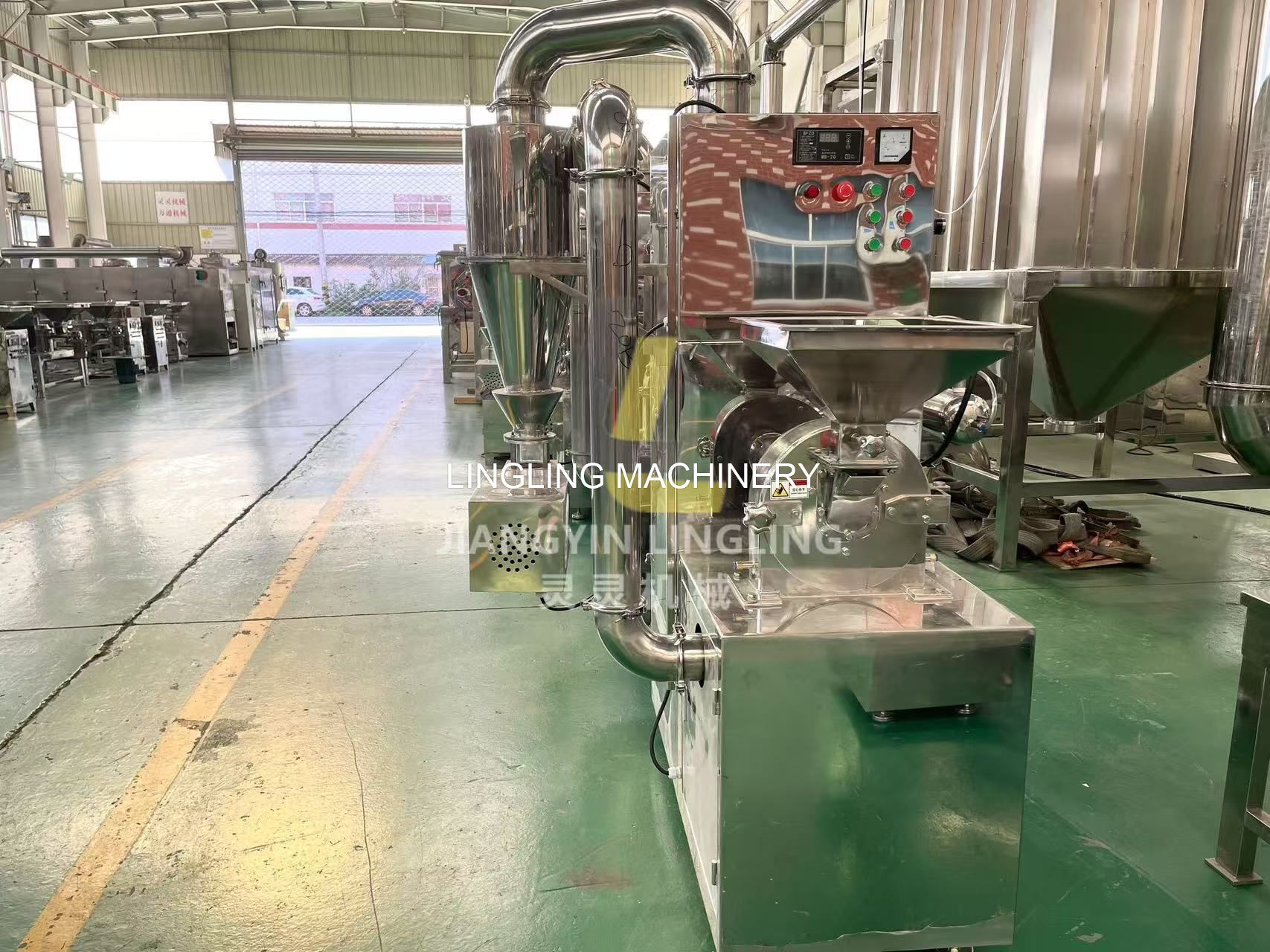

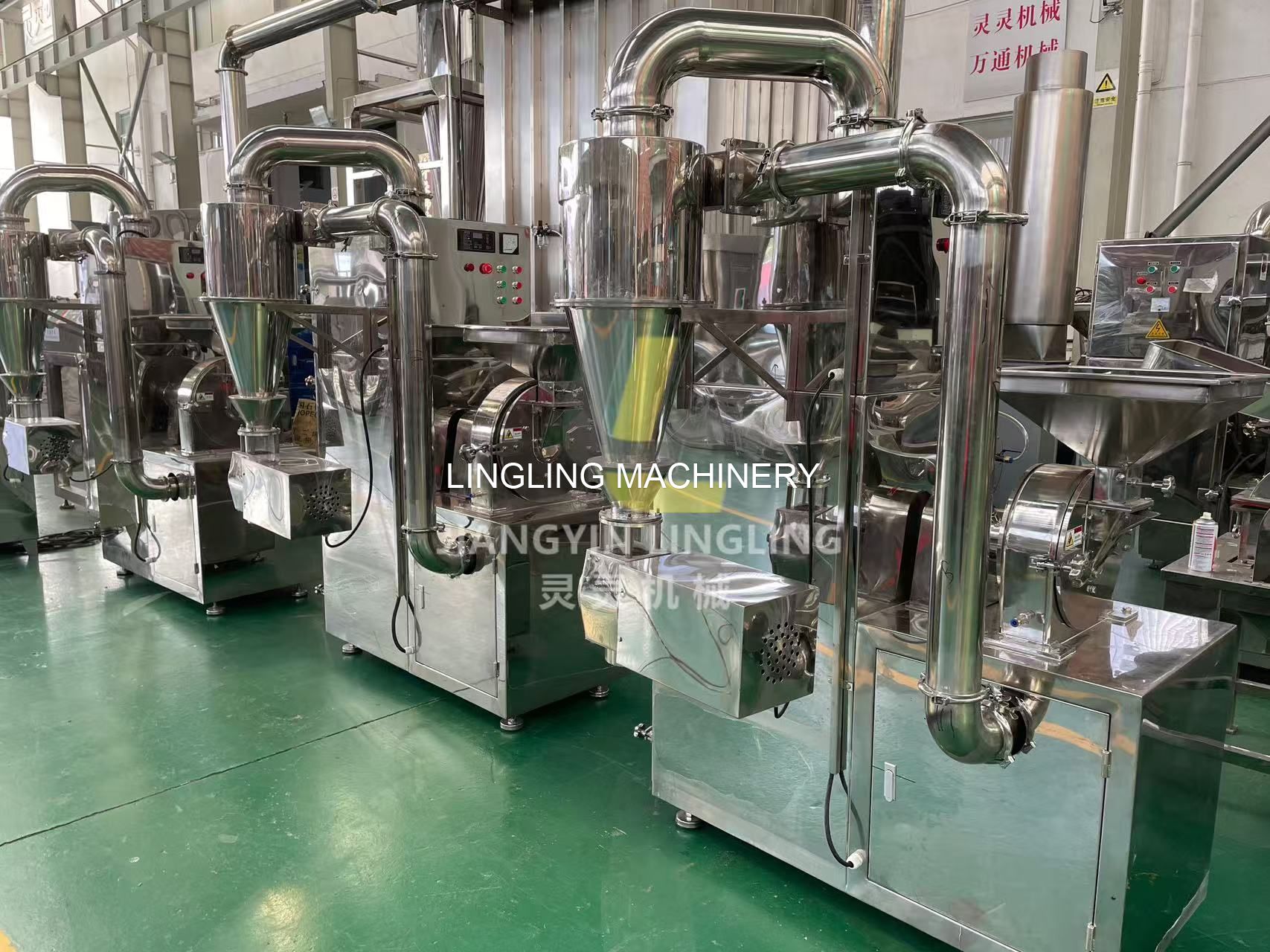

The materials are crushed by the impact and grinding function of the relative motion between the active and fixed fluted discs as well as the impact between the materials in the LL pin cyclone deusting and grinding machine unit. Via a revolving centrifugal force function, broken materials enter the capture bag. A dust collector filters and recycles the dust through a bag filter box.
1. Strong grinding capacity, minimal energy usage, and comparatively fine granularity
2. Crush in a large space: When the turbine runs, high-strength wind pressure is created. This helps to prevent material from clogging and depositing in the screen during production, as well as to boost production capacity and lessen the problem of over-crushing.
3. Because the cut is strengthened, fibrous materials can crush more forcefully than ordinary equipment.
4. The plug-in type, dependable placement, and ease of screen installation; the service life is comparatively greater than that of the ring-screen.
5. An internal motor reduces noise and the center of gravity.
None
| Model | Capacity (kg) | Feed size(mm) | Output size(mesh) | Total power(kw) | Main speed(r/min) | Dimension (mm) | Weight (kg) |
| WF-20B | 20-150 | <6 | 12-120 | 4 | ~4500 | 550*600*1250 | 250 |
| WF-30B | 50-300 | <10 | 5.5 | ~3800 | 600*750*1450 | 320 | |
| WF-40B | 100-400 | <12 | 7.5 | ~3400 | 750*900*1600 | 450 | |
| WF-50B | 200-500 | <15 | 11 | ~2900 | 850*900*1850 | 580 | |
| WF-60B | 300-600 | <15 | 22 | ~2400 | 950*1000*1850 | 600 | |
| WF-80B | 500-1200 | <15 | 37 | ~2200 | 2400*1100*2000 | 1000 |
