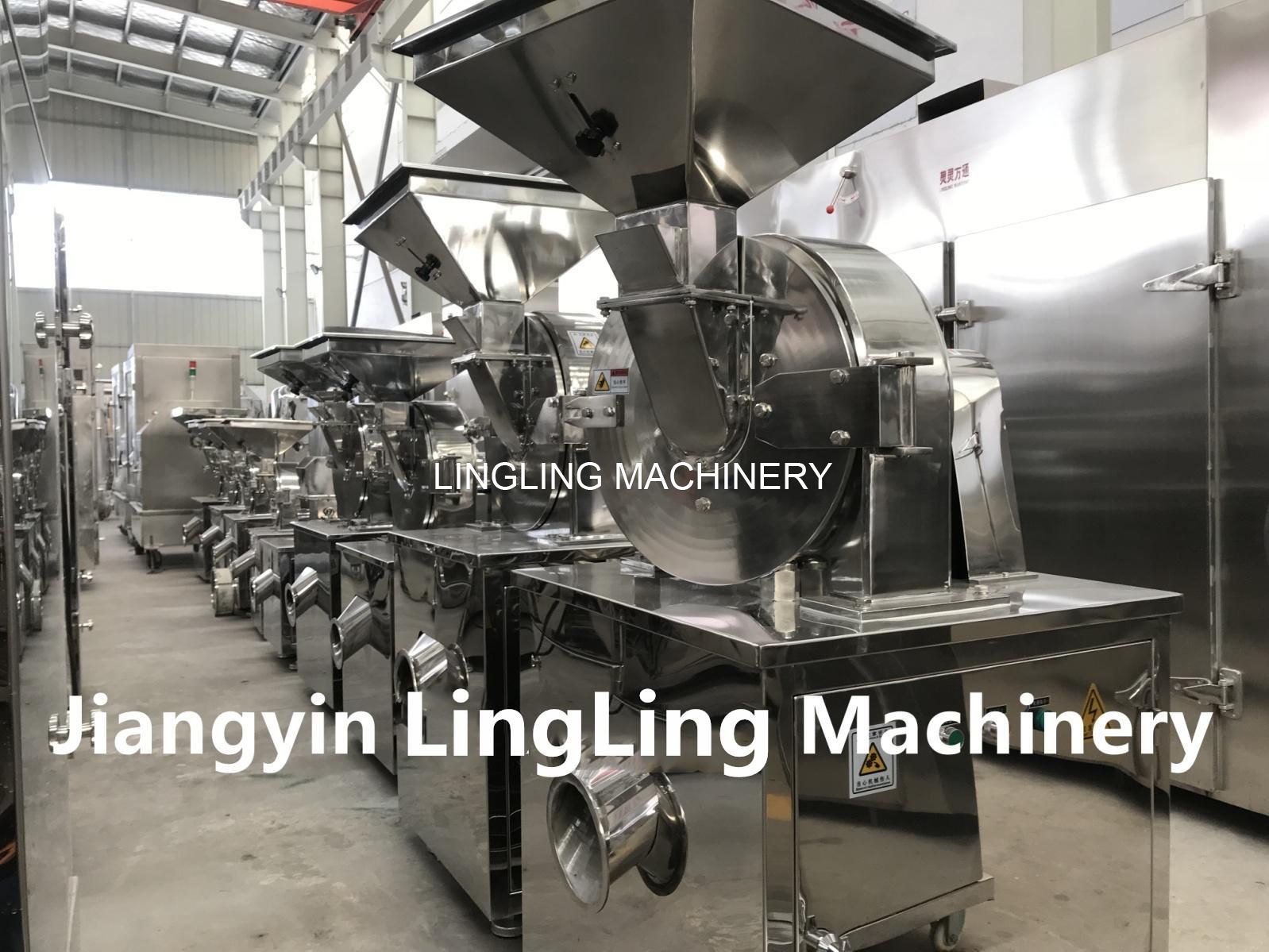

A new generation of crushing equipment, the LINGLING WF white sugar spice powder making milling machine is primarily used in the chemical industry, medicine (TCM), food, spices, resin powder, besmear powder, etc., as well as in sex material and high temperature resistant material, crushing, and dust collection.
1. LINGLING WF white sugar spice powder making grinding milling grinder mill machine match the turbine blade, it is also can match other different blade (if consumer need, we can design. so the consumer can change different blade to use)
2. LINGLING WF white sugar spice powder making grinding milling grinder mill machine has water cooling system.
3. LINGLING WF white sugar spice powder making grinding milling grinder mill machine can add the magnetic, to remove the Metal impurity (as consumer requirement)
4. LINGLING WF white sugar spice powder making grinding milling grinder mill machine can match the general dust absorption system, it also can match the pulse dust absorption system
The tooth disc high-speed rotating knife, fixed knife impact, and shear grinding are used in the LINGLING WF white sugar spice powder grinding mill machine. Good crushing results from the high airflow created during crushing, which also allows the heat of the crushing chamber and the final product to flow out of the sieve simultaneously. Various sieves may be used to determine the crushing fineness.
Model | Capacity (kg) | Feed size(mm) | Output size(mesh) | Total power(kw) | Main speed(r/min) | Dimension (mm) | Weight (kg) |
WF-20B | 20-150 | <6 | 12-120 | 4 | ~4500 | 550*600*1250 | 250 |
WF-30B | 50-300 | <10 | 5.5 | ~3800 | 600*750*1450 | 320 | |
WF-40B | 100-400 | <12 | 7.5 | ~3400 | 750*900*1600 | 450 | |
WF-50B | 200-500 | <15 | 11 | ~2900 | 850*900*1850 | 580 | |
WF-60B | 300-600 | <15 | 22 | ~2400 | 950*1000*1850 | 600 | |
WF-80B | 500-1200 | <15 | 37 | ~2200 | 2400*1100*2000 | 1000 |
