WF Grinder

LL chili grinding machine
LL chili grinding machineLL chili grinding machine
LL chili grinding machineLL chili grinding machine

LL chili grinding machine

Share
  • Specification
  • Features
  • Structure
  • Technology data
  • Machine Pics

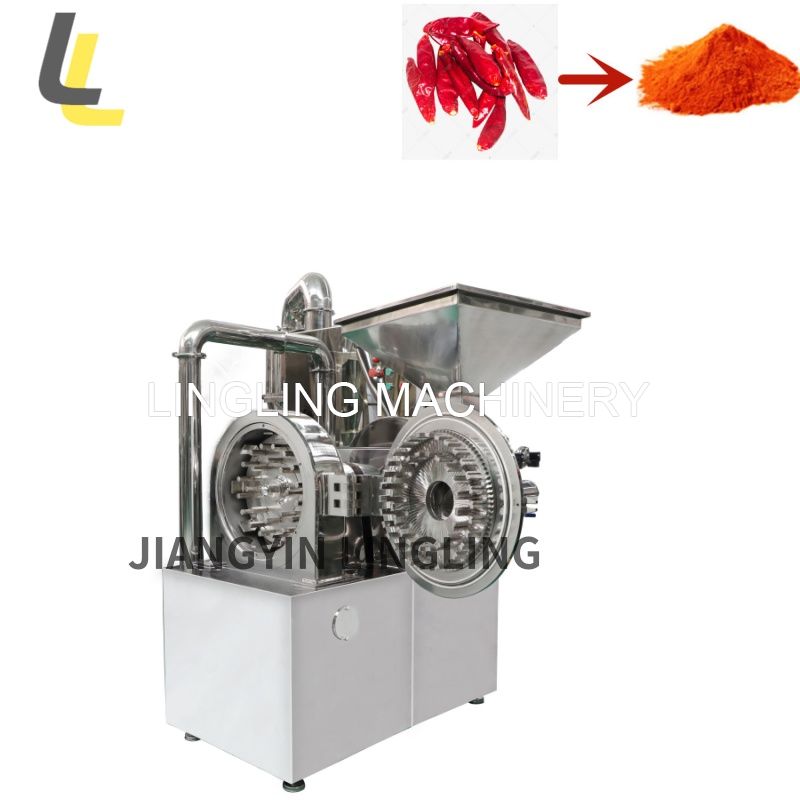

LL chili grinding machine is mainly used in chemical industry, medicine (TCM) and food,including sugar, tea, spices,chilli,ginger, spice, coffee,herb,salt,pepper,tobacco,corn,leaf,cocoa,maize, supplement,turmeric,resin powder,besmear powder etc,high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.

1. LL chili grinding machine match the turbine blade, it is also can match other different blade (if consumer need, we can design. so the consumer can change different blade to use)

2. LL chili grinding machine has water cooling system.

3. LL chili grinding machine can add the magnetic, to remove the Metal impurity (as consumer requirement)

4.  LL chili grinding machine can match the general dust absorption system, it also can match the pulse dust absorption system


None

ModelCapacity (kg)Feed size(mm)Output size(mesh)Total power(kw)Main speed(r/min)Dimension (mm)Weight (kg)
WF-20B20-150<6  12-1204~4500550*600*1250250
WF-30B50-300<105.5~3800600*750*1450320
WF-40B100-400<127.5~3400750*900*1600450
WF-50B200-500<1511~2900850*900*1850580
WF-60B300-600<1522~2400950*1000*1850600
WF-80B500-1200<1537~22002400*1100*20001000





LL chemical grinder machine

LL chemical grinder machine
