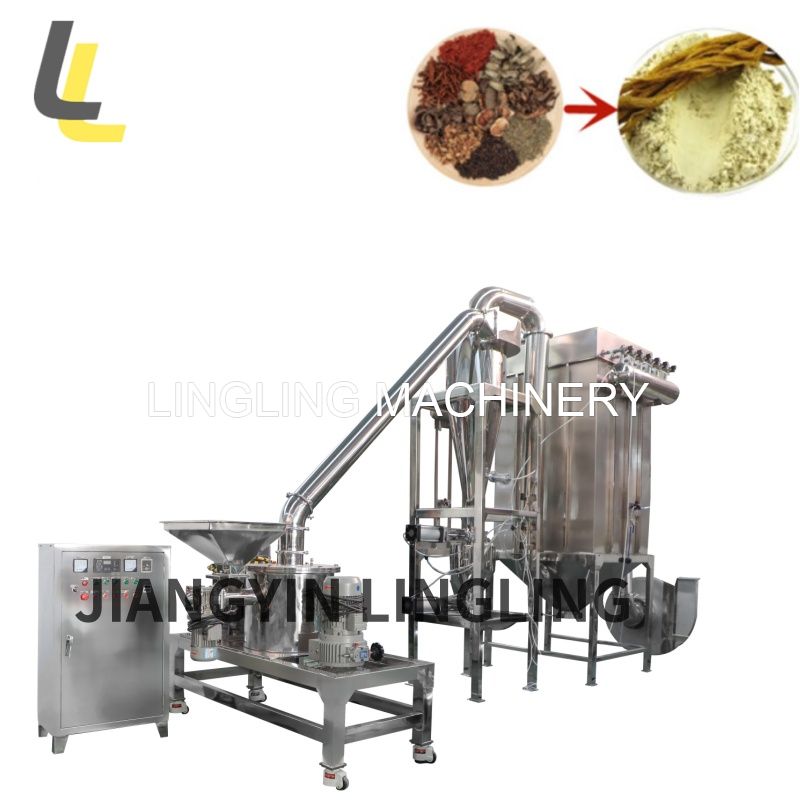

LL Medicine Air Classifier Mill is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material.
1. The Medicine Air Classifier Mill has a simple structure, making installation and upkeep effortless. 2. The Spices Air Classifier Mill uses top-notch parts from world-famous brands for reliability. 3. The Food Air Classifier Mill stays dust-free during production, collecting it all in the box. 4. The Chemical Air Classifier Mill adjusts particle size by speed, 80 - 600 mesh. 5. The pharmaceutical Air Classifier Mill has a water-cooling jacket for efficient cooling.
Material is fed into the Medicine Air Classifier Mill by a screw conveyor. Inside, the rapidly rotating blades slice and grind it. After passing the guide ring, it moves into the classification chamber. Particles that are larger are thrown back for further grinding, whereas the smaller ones proceed to the cyclone separator and the dust box.
| Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 |
| Production Capacity (kg) | 10~50 | 50~100 | 80~200 | 200~400 | 400~800 | 500~1000 | 600~1200 |
| Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 |
| Crushing fineness (mesh) | 80-600 | ||||||
| Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 |
| Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 |
| Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 |
| Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 |
*The above specifications are provided for reference only. We can also design and manufacture different standard upon customer's request.
